Name: Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom
Brand: Luyu Royal Gold Building Materials (Heyuan) Co., Ltd.
Price: 5,050.00 USD
Availability: InStock

Home Products Furnace Refractory Bricks

Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom

$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$
$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$
$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$
$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$
$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$
$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$

$Vermiculite Alumina Silica Refractory Brick Material For Aluminum Insulation Custom$

Product Details:

Place of Origin:	China
Brand Name:	RG

Payment & Shipping Terms:

Minimum Order Quantity:	50 CBM
Price:	USD 100-10000 CBM
Delivery Time:	14 working days
Payment Terms:	T/T
Supply Ability:	100 CBM per week

Contact Now

Detailed Product Description

Features:	Good Erosion Resistance	Refractoriness:	High, Medium, Low
Extended Kiln Life:	Yes	Corrosion Resistance:	High
Water Absorption:	≤6%	Feature:	High Temperature Resistance
Installation Method:	Dry Press, Ramming, Casting, Etc.	Productname:	Furnace Refractory Bricks
Material:	High Alumina, Fire Clay, Silica, Magnesia, Or Zirconia	Resistance To Spalling:	Good
Strength:	High	Standard Size:	230x114x65mm
Weight:	As Designed	Refractoriness Under Load:	≥1700℃
Thermalconductivity:	0.5 - 2.5 W/m·K
Highlight:	Vermiculite refractory brick material , Insulation refractory brick material , custom alumina silica refractory brick

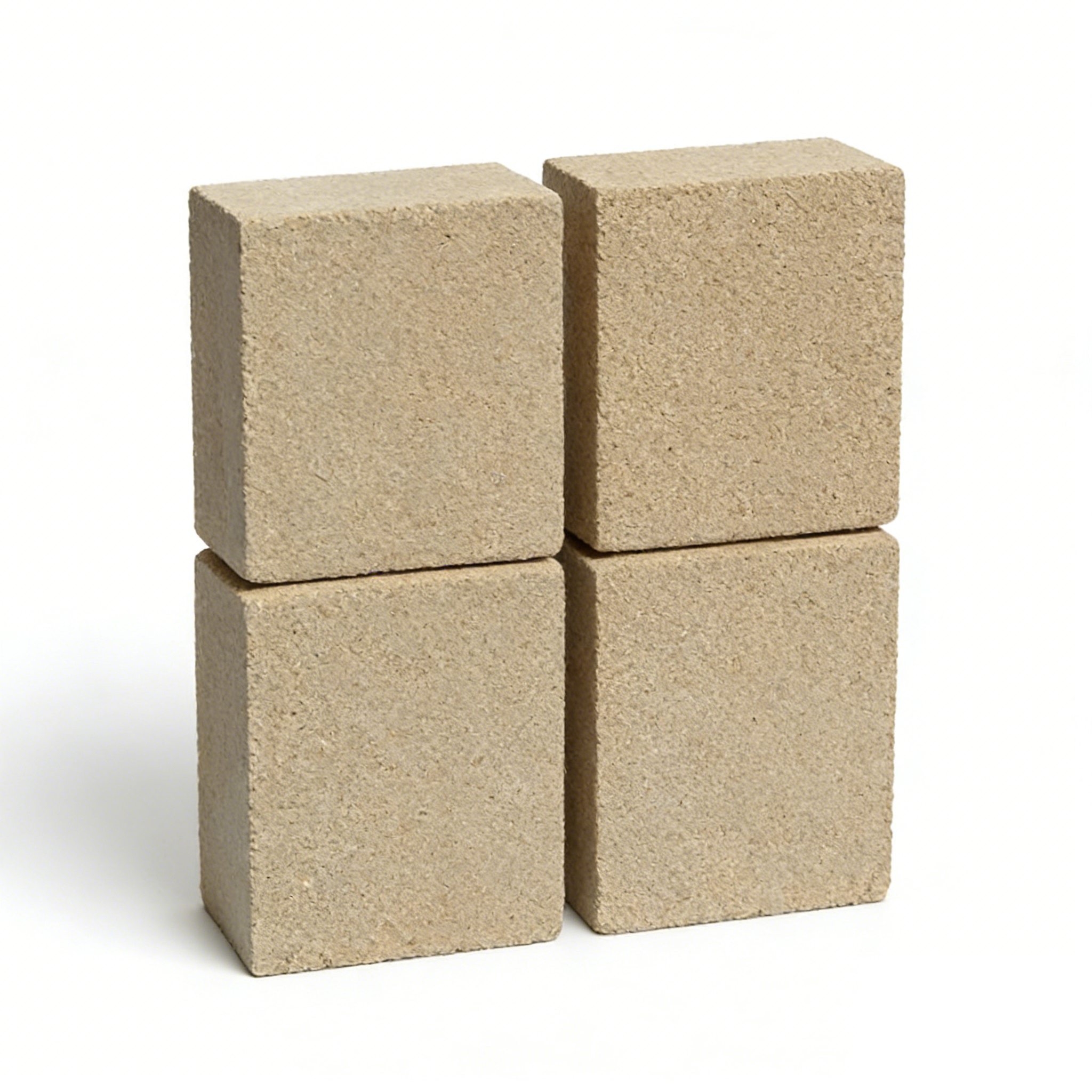

Vermiculite Refractory Bricks For Aluminium Tanks (VM-1250)

Description:

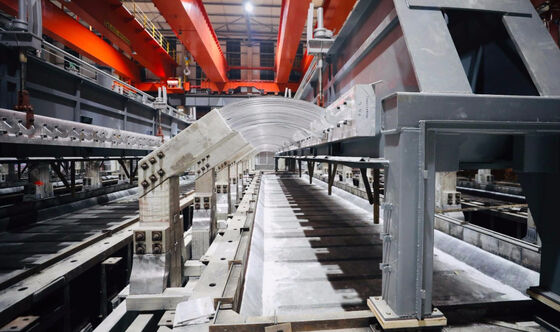

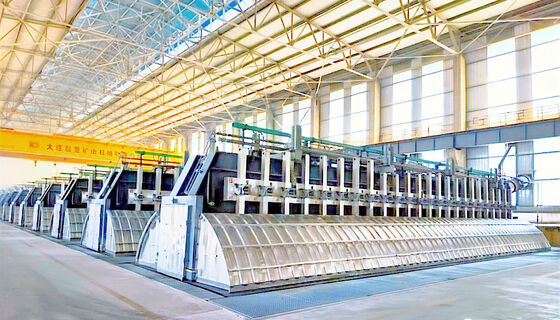

Vermiculite Refractory Bricks are designed exactly for the aluminum insulation industry especially aluminum electrolysis cells.

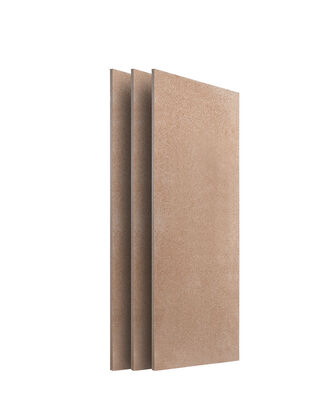

We have RG Vermiculite insulation boards in different densities, LYRG-VM1250, LYRG-VM1100, LYRG-VM550, LYRG-VM450. Both of them are non-combustible under the maximum service temperature of 1100°C , and combine high strength with low-thermal conductivity, So they are highly resistant to cryolite penetrations and fluorides, and not wetted by molten aluminum

Main Feature

The Main benefits of RG Vermiculite insulation boards are:

1. Reduce CO2 footprint and power consumption

2. Increase reduction cell life, hence reducing the cell rebuild frequency

3. Increase production flexibility

4. Reduce relining time through customized pot sets and increase production

5. Offers resistance to attack from vapor-, molten cryolite and -aluminum

Main Data

Features	Index	Unit
Maximum service temperature	1100	°C
Bulk density	1250	Kg/m3
Cold crushing strength	8.5	MPa
Modulus of rupture	2.5	MPa
Linear reheat shrinkage after 12 hours at 1,000°C	1.5	%
Total porosity	55	%
Coeﬃcient of reversible thermal expansion at 20°C to 750°C	10	X10-6 k-1
Resistance to thermal shock	＞30	Cycles

Thermal conductivity Mean temperature
200°C	0.08	W/(m×K)
400°C	0.14	W/(m×K)
600°C	0.18	W/(m×K)
800°C	0.20	W/(m×K)
Chemical
Silica SiO2	52	%
Titanium Dioxide TiO2	1.6	%
Ferric Oxide Fe2O3	3.6	%
Alumina Al2O3	23	%
Magnesium MgO	8.9	%
Calcium Oxide CaO	1.5	%
Sodium Oxide Na2O	0.2	%
Potassium oxide K2O	5.6	%
Loss on ignition at 1,025°C LOI	2.8	%
