Bulk Furnace Refractory Bricks Vermiculite Firebrick Non Combustible Material 1100°C

Bulk Furnace Refractory Bricks Vermiculite Firebrick Non Combustible Material 1100°C

  • Bulk Furnace Refractory Bricks Vermiculite Firebrick Non Combustible Material 1100°C
  • Bulk Furnace Refractory Bricks Vermiculite Firebrick Non Combustible Material 1100°C
  • Bulk Furnace Refractory Bricks Vermiculite Firebrick Non Combustible Material 1100°C
Bulk Furnace Refractory Bricks Vermiculite Firebrick Non Combustible Material 1100°C
Product Details:
Place of Origin: China
Brand Name: RG
Payment & Shipping Terms:
Minimum Order Quantity: 50 CBM
Price: USD 100-10000 CBM
Delivery Time: 14 working days
Payment Terms: T/T
Supply Ability: 100 CBM per week
Contact Now
Detailed Product Description
Features: Good Abrasion Resistance Shape Type: Standard Straight Shape
Thermalshockresistance: Good To Excellent Depending On Material Servicelife: Typically 3-10 Years Depending On Operating Conditions
Temperature Resistance: Up To 1700°C Softening Point: High
Acid Resistance: ≥95% Chemicalresistance: Resistant To Slag, Acids, And Alkalis
Installationmethod: Mortar Or Dry Stacking Service Temperature: High
Color: Red, White, Gray, Or Black Depending On Material Material: Fireclay, Alumina, Silica, Magnesia, Or Carbon
Thermalconductivity: 0.5 - 2.0 W/m·K Acid Resistant Degree: ≥99.8%
Chemical Resistance: Good
Highlight:

Bulk Furnace Refractory Bricks

,

1100°C Furnace Refractory Bricks

,

Non Combustible vermiculite firebrick

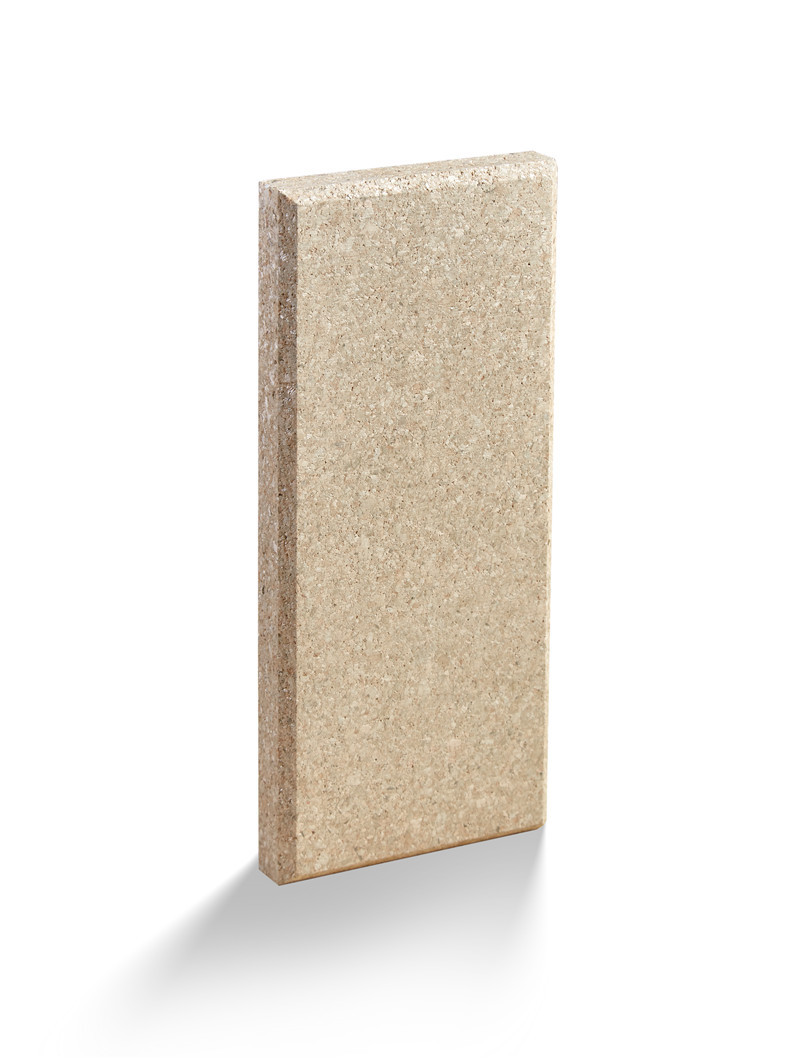

Vermiculite Refractory Bricks For Aluminium Tanks (VM-1250)



Description:

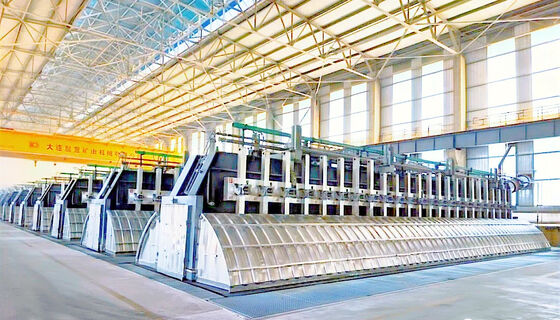

Vermiculite Refractory Bricks are designed exactly for the aluminum insulation industry especially aluminum electrolysis cells.

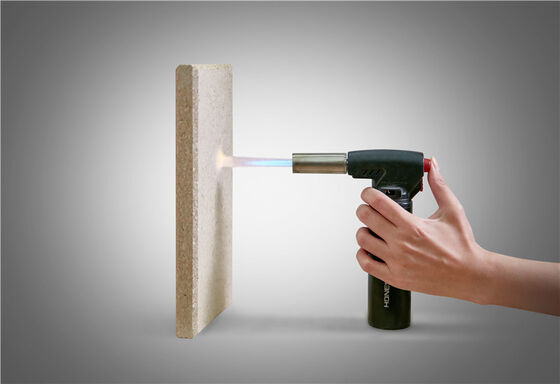

We have RG Vermiculite insulation boards in different densities, LYRG-VM1250, LYRG-VM1100, LYRG-VM550, LYRG-VM450. Both of them are non-combustible under the maximum service temperature of 1100°C , and combine high strength with low-thermal conductivity, So they are highly resistant to cryolite penetrations and fluorides, and not wetted by molten aluminum

Main Feature



The Main benefits of RG Vermiculite insulation boards are:

1. Reduce CO2 footprint and power consumption​

2. Increase reduction cell life, hence reducing the cell rebuild frequency​

3. Increase production flexibility ​

4. Reduce relining time through customized pot sets and increase production​

5. Offers resistance to attack from vapor-, molten cryolite and -aluminum



Main Data



Features Index Unit
Maximum service temperature 1100 °C
Bulk density 1250 Kg/m3
Cold crushing strength 8.5 MPa
Modulus of rupture 2.5 MPa
Linear reheat shrinkage after 12 hours at 1,000°C 1.5 %
Total porosity 55 %
Coefficient of reversible thermal expansion at 20°C to 750°C 10 X10-6 k-1
Resistance to thermal shock >30 Cycles

Thermal conductivity Mean temperature
200°C 0.08 W/(m×K)
400°C 0.14 W/(m×K)
600°C 0.18 W/(m×K)
800°C 0.20 W/(m×K)
Chemical
Silica SiO2 52 %
Titanium Dioxide TiO2 1.6 %
Ferric Oxide Fe2O3 3.6 %
Alumina Al2O3 23 %
Magnesium MgO 8.9 %
Calcium Oxide CaO 1.5 %
Sodium Oxide Na2O 0.2 %
Potassium oxide K2O 5.6 %
Loss on ignition at 1,025°C LOI 2.8 %
