Vermiculite Insulation Board: Superior Fire Resistance & Thermal Performance for Demanding Applications

Product Overview

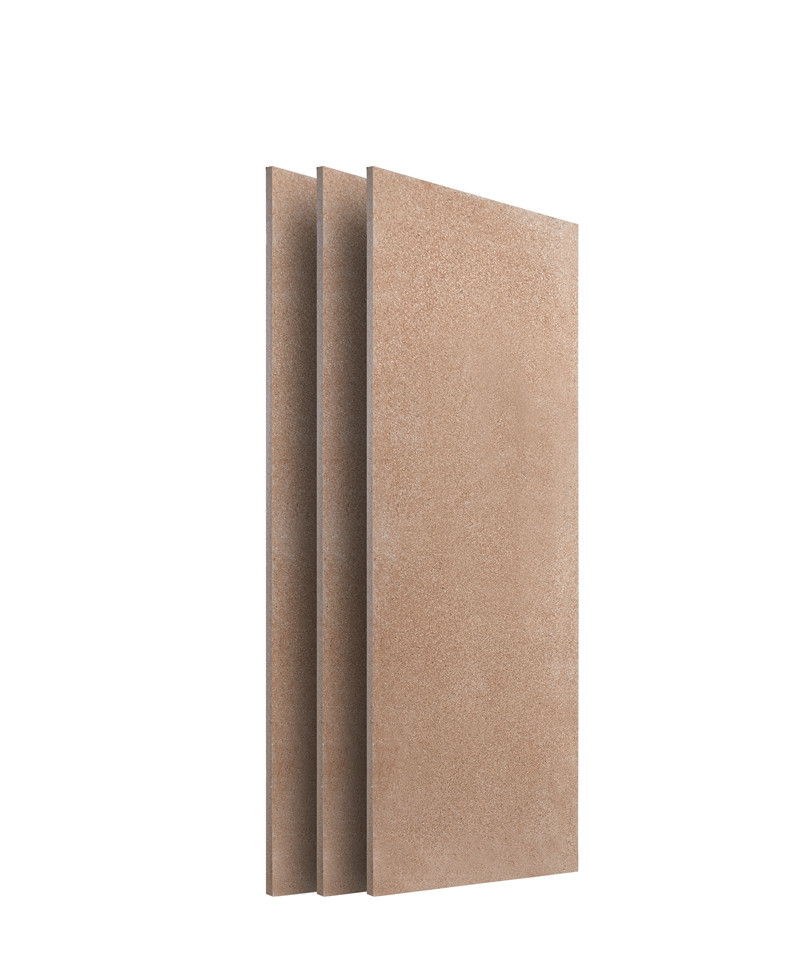

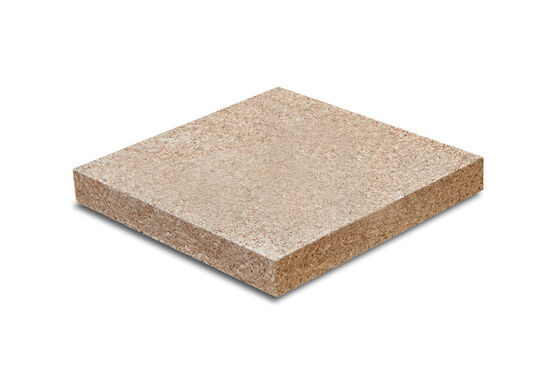

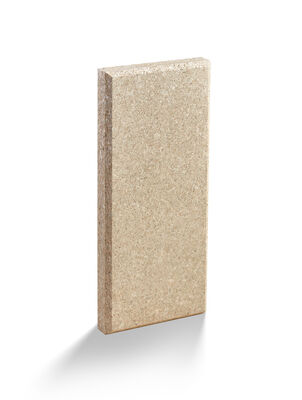

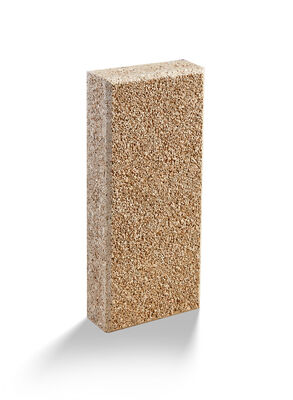

Vermiculite Insulation Board is a rigid, high-performance insulation panel manufactured from exfoliated vermiculite, inorganic binders, and reinforcing fibers. It is engineered to provide exceptional fire resistance, thermal insulation, and acoustic damping in a single, easy-to-install product. Ideal for commercial, industrial, and high-specification residential projects, it ensures safety, compliance, and energy efficiency.

Key Features & Benefits

• Unmatched Fire Protection: Classified as a non-combustible material (typically A1 or similar, subject to local standards). It acts as a formidable fire barrier, containing flames and limiting smoke spread, thereby protecting structural integrity and increasing safe evacuation time.

• Excellent Thermal Insulation: Low thermal conductivity significantly reduces heat transfer. Contributes to improved building energy performance, lower HVAC operational costs, and enhanced occupant comfort.

• Superior Acoustic Performance: Effectively dampens sound transmission, reducing noise pollution between rooms, floors, and from external sources. Perfect for partition walls, ceilings, and floors in multi-unit dwellings or offices.

• Rigid & Durable: High compressive strength allows it to withstand loads without sagging or crumbling. Maintains its dimensional stability and performance over time under various environmental conditions.

• Moisture Resistant: Inorganic composition makes it resistant to mold, mildew, and rot. It will not sustain vermin, ensuring long-term hygiene and material integrity.

• Easy to Fabricate & Install: Can be easily cut, drilled, and shaped on-site using standard woodworking tools. Available in a range of thicknesses and sizes to suit various framing systems and applications.

• Chemically Inert & Environmentally Friendly: Contains no CFCs, HCFCs, or formaldehyde. Made from abundant natural minerals, contributing to greener building specifications.

Typical Applications

• Fire-Rated Walls & Partitions: Core insulation in walls requiring certified fire resistance (e.g., stairwells, service shafts, compartmentation walls).

• Fire-Resisting Ceilings & Soffits: Provides fire protection and thermal insulation in suspended ceiling systems.

• Structural Fire Protection: Encasement of steel beams and columns to meet fire rating requirements.

• High-Temperature Insulation: Used as a protective board behind and around stoves, fireplaces, and boilers.

• Acoustic Walls & Floors: In party walls, home theaters, recording studios, and floor/ceiling assemblies where sound reduction is critical.

• Industrial & Marine Applications: Insulation for ovens, furnaces, and in shipbuilding for fire integrity.

Technical Data

• Material: Exfoliated vermiculite, inorganic binders

• Fire Rating: Non-combustible

• Thermal Conductivity (λ): Approximately 0.06 - 0.07 W/m·K

• Density: Typically 450 - 1100 kg/m³

• Compressive Strength: >0.8 MPa

• Moisture Resistance: Excellent (Hydrophobic properties)

• Standard Sizes: Commonly 1200mm x 600mm, 1200mm x 1200mm (Custom sizes available)

• Thickness Range: 20mm, 25mm, 29mm, 38mm, 40mm, 50mm, 60mm and others.

Why Choose Our Vermiculite Insulation Board?

• Proven Performance: Rigorously tested to meet international safety and quality standards.

• Technical Support: Our experts assist with specification and application guidance.

• Reliable Supply: Consistent quality and availability for projects of all scales.

• Comprehensive Solution: Solves multiple challenges—fire, heat, and sound—with one integrated product.

Request a Quote or Technical Data Sheet

Ready to specify a safer, quieter, and more energy-efficient building solution? Contact our team today for pricing, samples, or detailed technical documentation tailored to your project requirements.
