| Place of Origin: | China |
| Brand Name: | RG |
| Minimum Order Quantity: | 50 CBM |
|---|---|
| Price: | USD 100-10000 CBM |
| Packaging Details: | pellet |
| Delivery Time: | 14 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 CBM |
| Material: | Vermiculite | Temperature: | 1200 |
|---|---|---|---|
| Density: | 1250 | ||
| Highlight: | 20mm Vermiculite Insulation Board,OEM Vermiculite Insulation Board,OEM 20mm vermiculite board |
||

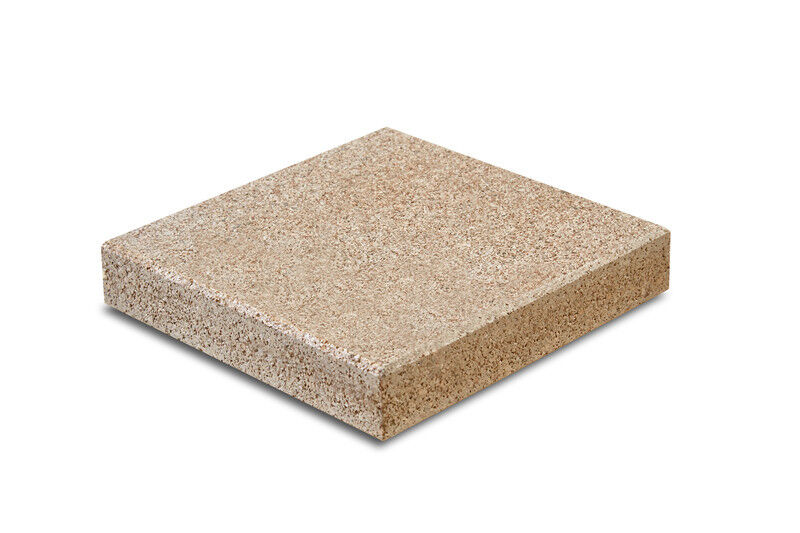

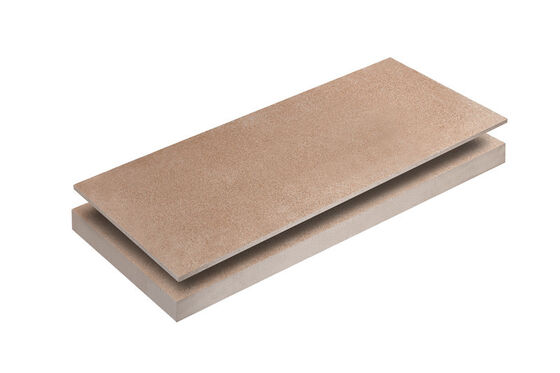

Vermiculite Refractory Boards For Aluminium Tanks (VM-1250)
Description:

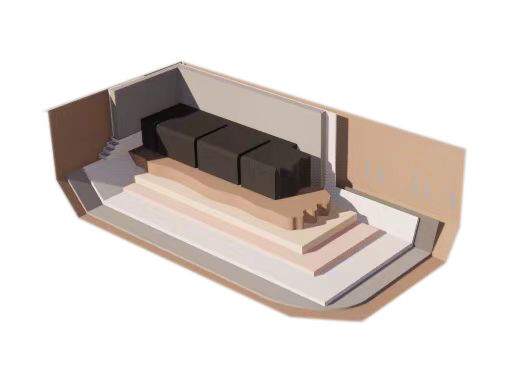

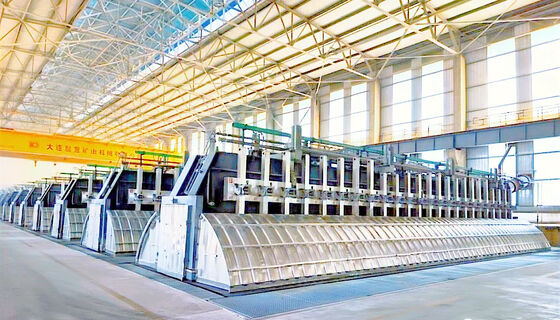

Vermiculite Refractory Boards are designed exactly for the aluminum insulation industry and especially aluminum electrolysis cells.
We have RG Vermiculite insulation boards in different density, LYRG-VM1250, LYRG-VM1100, LYRG-VM550, LYRG-VM450. Both of them are non-combustible under the maximum service temperature of 1100°C , and combine high strength with low-thermal conductivity, So they are highly resistant to cryolite penetrations and fluorides, and not wetted by molten aluminum
Main Feature
The Main benefits of RG Vermiculite insulation boards are:
1. Reduce CO2 footprint and power consumption
2. Increase reduction cell life, hence reducing the cell rebuild frequency
3. Increase production flexibility
4. Reduce relining time through customized pot sets and increase production
5. Offers resistance to attack from vapor-, molten cryolite and -aluminum
Main Data
| Features | Index | Unit |
| Maximum service temperature | 1100 | °C |
| Bulk density | 1250 | Kg/m3 |
| Cold crushing strength | 8.5 | MPa |
| Modulus of rupture | 2.5 | MPa |
| Linear reheat shrinkage after 12 hours at 1,000°C | 1.5 | % |
| Total porosity | 55 | % |
| Coefficient of reversible thermal expansion at 20°C to 750°C | 10 | X10-6 k-1 |
| Resistance to thermal shock | >30 | Cycles |
| Thermal conductivity Mean temperature | ||
| 200°C | 0.08 | W/(m×K) |
| 400°C | 0.14 | W/(m×K) |
| 600°C | 0.18 | W/(m×K) |
| 800°C | 0.20 | W/(m×K) |
| Chemical | ||
| Silica SiO2 | 52 | % |
| Titanium Dioxide TiO2 | 1.6 | % |
| Ferric Oxide Fe2O3 | 3.6 | % |
| Alumina Al2O3 | 23 | % |
| Magnesium MgO | 8.9 | % |
| Calcium Oxide CaO | 1.5 | % |
| Sodium Oxide Na2O | 0.2 | % |
| Potassium oxide K2O | 5.6 | % |
| Loss on ignition at 1,025°C LOI | 2.8 | % |
